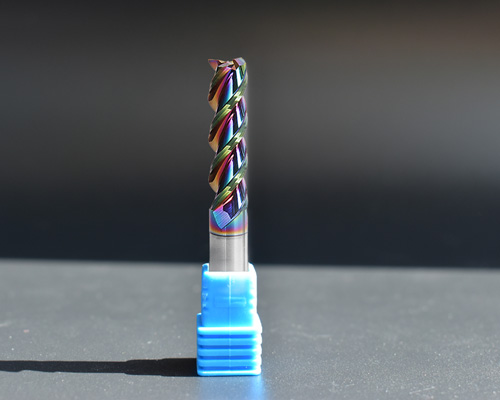

3 Flute Flat End Mill

3 Flute Flat End Mill
3 Flute Flat End Mill

Flat end mill with3 flutes, specially for aluminum alloy milling. This type end mill has smooth chip discharge, easy longitudinal feeding milling, and difficult to measure the outer diameter. It is used for shallow groove, side milling.

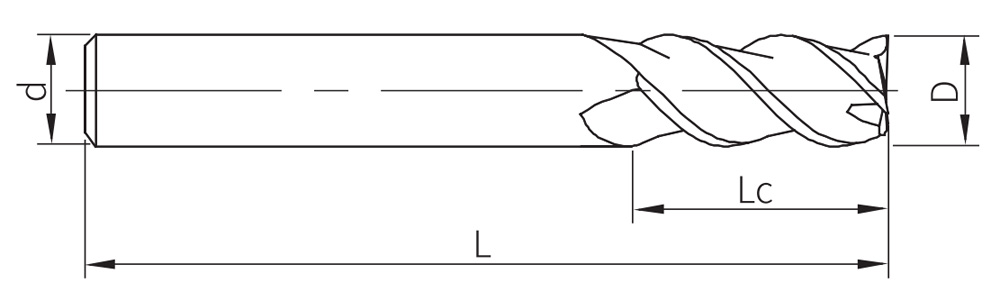

3 Flute Flat End Mill

Standard size:


D  Cutting Dia.(mm)

D Shank Dia.(mm)

Lc Cutting length(mm)

L Overall length(mm)

2

4

6

50

3

4

9

50

4

4

12

50

5

6

13

50

6

6

18

50

8

8

24

60

10

10

30

75

12

12

36

75

16

16

48

100

18

18

48

100

20

20

48

100
