FLAT END MILL

Flat end mill is the end mill with flat/square end. It is a general end type for rough milling,more economic compared with ball end mill and corner radius end mill, but it is not suitable for machining in speed as high as other two type end mills because too high rotation and feed rate may cause sharp corner blade to break.

There are four carbide grades applied to general flat end mills:

BT45, for milling materials of which hardness range from HRC45degree to HRC48degree, workpiece categories P, K, and softer stainless steel under M group in ISO classification.

BT50, for HRC50 to HRC53degree, mainly for M, N, and K group workpiece.

BT55, for HRC55 to HRC58degree, for S, M, and K workpiece.

BT60, for HRC 60 to 65degree, for milling quenched materials (HRC65 about), hardwood, and finish milling of SUS 316L stainless steel, most workpiece under ISO category H.

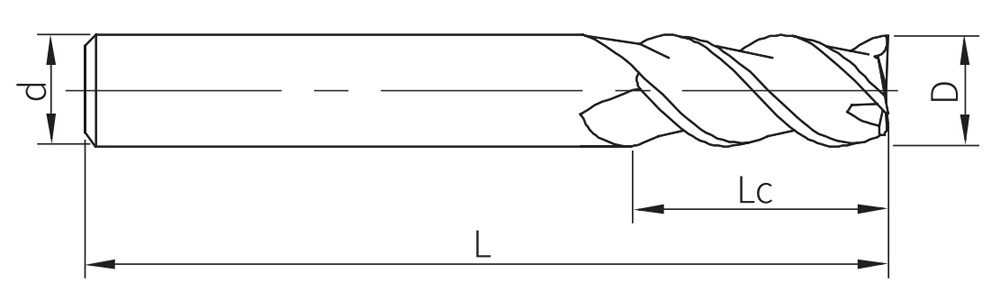

Flat End Mill.jpg

Flat End Mill List

	D Cutting Dia.(mm)	D Shank Dia.(mm)	Lc Cutting length(mm)	L Overall length(mm)
6 Flute Flat End Mill	6	6	25	75
2 Flute Flat End Mill	2	4	6	50
3 Flute Flat End Mill	2	4	6	50
4 Flute Flat End Mill	1	4	3	50
2 Flute, 0.2 mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.2mm	4mm	0.4mm	50mm
2 Flute, 0.3 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.3mm	4mm	0.6mm	50mm
2 Flute, 0.4Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.4mm	4mm	0.8mm	50mm
2 Flute, 0.5Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.5mm	4mm	1.0mm	50mm
2 Flute, 0.6Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.6mm	4mm	1.0mm	50mm
2 Flute, 0.7Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.7mm	4mm	1.4mm	50mm
2 Flute, 0.8Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.8mm	4mm	1.6mm	50mm
2 Flute, 0.9Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.9mm	4mm	1.8mm	50mm
2 Flute, 1 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1mm	4mm	3mm	50mm
2 Flute, 1.1 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.1mm	4mm	3mm	50mm
2 Flute, 1.2 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.2mm	4mm	3mm	50mm
2 Flute, 1.3 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.3mm	4mm	3mm	50mm
2 Flute, 1.4 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.4mm	4mm	3mm	50mm
2 Flute, 1.5 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.5mm	4mm	4mm	50mm
2 Flute, 1.6 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.6mm	4mm	4mm	50mm
2 Flute, 1.7 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.7mm	4mm	4mm	50mm
2 Flute, 1.8 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.8mm	4mm	5mm	50mm
2 Flute, 1.9 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.9mm	4mm	5mm	50mm
2 Flute, 2 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	2mm	4mm	6mm	50mm
2 Flute, 2.5 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	2mm	4mm	6mm	50mm
2 Flute, 3 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	3mm	4mm	10mm	50mm
2 Flute, 4 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	3mm	4mm	10mm	50mm
2 Flute, 6mm Flat Carbide End Mill, Mill Cutter	6mm	6mm	15mm	50mm
2 Flute, 8mm Flat Carbide End Mill, Mill Cutter	8mm	8mm	20mm	60mm
2 Flute, 10mm Flat Carbide End Mill, Mill Cutter	10mm	10mm	25mm	75mm
2 Flute, 12mm Flat Carbide End Mill, Mill Cutter	12mm	12mm	30mm	75mm
2 Flute, 14mm Flat Carbide End Mill, Mill Cutter	14mm	14mm	42mm	100mm
2 Flute, 16mm Flat Carbide End Mill, Mill Cutter	16mm	16mm	48mm	100mm
2 Flute, 18mm Flat Carbide End Mill, Mill Cutter	18mm	18mm	48mm	100mm
2 Flute, 20mm Flat Carbide End Mill, Mill Cutter	20mm	20mm	48mm	100mm
3 Flute, 2mm Flat Carbide End Mill, Mill Cutter For Aluminum	2mm	4mm	6mm	50mm
3 Flute, 3mm Flat Carbide End Mill, Mill Cutter For Aluminum	3mm	4mm	9mm	50mm
3 Flute, 4mm Flat Carbide End Mill, Mill Cutter For Aluminum	4mm	4mm	12mm	50mm
3 Flute, 5mm Flat Carbide End Mill, Mill Cutter For Aluminum	5mm	6mm	13mm	50mm
3 Flute, 6mm Flat Carbide End Mill, Mill Cutter For Aluminum	6mm	6mm	18mm	50mm
3 Flute, 8mm Flat Carbide End Mill, Mill Cutter For Aluminum	8mm	8mm	24mm	60mm
3 Flute, 10mm Flat Carbide End Mill, Mill Cutter For Aluminum	10mm	10mm	30mm	75mm
3 Flute, 12mm Flat Carbide End Mill, Mill Cutter For Aluminum	12mm	12mm	36mm	75mm
3 Flute, 14mm Flat Carbide End Mill, Mill Cutter For Aluminum	14mm	14mm	40mm	100mm
3 Flute, 16mm Flat Carbide End Mill, Mill Cutter For Aluminum	16mm	16mm	48mm	100mm
3 Flute, 18mm Flat Carbide End Mill, Mill Cutter For Aluminum	18mm	18mm	48mm	100mm
3 Flute, 20mm Flat Carbide End Mill, Mill Cutter For Aluminum	20mm	20mm	48mm	100mm
4 Flute, 1 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1mm	4mm	3mm	50mm
4 Flute, 2 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	2mm	4mm	6mm	50mm
4 Flute, 3 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	3mm	4mm	10mm	50mm
4 Flute, 4 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	3mm	4mm	10mm	50mm
4 Flute, 6mm Flat Carbide End Mill, Mill Cutter	6mm	6mm	15mm	50mm
4 Flute, 8mm Flat Carbide End Mill, Mill Cutter	8mm	8mm	20mm	60mm
4 Flute, 10mm Flat Carbide End Mill, Mill Cutter	10mm	10mm	25mm	75mm
4 Flute, 12mm Flat Carbide End Mill, Mill Cutter	12mm	12mm	30mm	75mm
4 Flute, 14mm Flat Carbide End Mill, Mill Cutter	14mm	14mm	42mm	100mm
4 Flute, 16mm Flat Carbide End Mill, Mill Cutter	16mm	16mm	48mm	100mm
4 Flute, 18mm Flat Carbide End Mill, Mill Cutter	18mm	18mm	48mm	100mm
4 Flute, 20mm Flat Carbide End Mill, Mill Cutter	20mm	20mm	48mm	100mm
6 Flute, 6mm Flat Carbide End Mill, Mill Cutter	6mm	6mm	25mm	75mm
6 Flute, 8mm Flat Carbide End Mill, Mill Cutter	8mm	8mm	35mm	100mm
6 Flute, 10mm Flat Carbide End Mill, Mill Cutter	10mm	10mm	45mm	100mm
6 Flute, 12mm Flat Carbide End Mill, Mill Cutter	12mm	12mm	50mm	150mm
6 Flute, 16mm Flat Carbide End Mill, Mill Cutter	16mm	16mm	65mm	150mm
6 Flute, 20mm Flat Carbide End Mill, Mill Cutter	20mm	20mm	65mm	150mm
4 Flute, 0.2 Mm Flat Carbide End Mill, Small Diameter Mill Cutter For Stainless Steel	0.2mm	4mm	0.4mm	50mm
4 Flute, 0.3 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.3mm	4mm	0.6mm	50mm
4 Flute, 0.4 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.4mm	4mm	0.8mm	50mm
4 Flute, 0.5 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.5mm	4mm	1.0mm	50mm
4 Flute, 0.6 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.6mm	4mm	1.2mm	50mm
4 Flute, 0.7 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.7mm	4mm	1.4mm	50mm
4 Flute, 0.8 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.8mm	4mm	1.6mm	50mm
4 Flute, 0.9 Mm Flat Carbide End Mill, Small Diameter Mill Cutter	0.9mm	4mm	1.8mm	50mm
4 Flute, 1Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1mm	4mm	3mm	50mm
4 Flute, 1.5Mm Flat Carbide End Mill, Small Diameter Mill Cutter	1.5mm	4mm	4mm	50mm
4 Flute, 2Mm Flat Carbide End Mill, Small Diameter Mill Cutter	2mm	4mm	6mm	50mm
4 Flute, 2.5Mm Flat Carbide End Mill, Small Diameter Mill Cutter	2.5mm	4mm	7mm	50mm
4 Flute, 3Mm Flat Carbide End Mill, Small Diameter Mill Cutter	3mm	4mm	8mm	50mm
4 Flute, 4Mm Flat Carbide End Mill, Small Diameter Mill Cutter	3mm	4mm	11mm	50mm
4 Flute, 5Mm Flat Carbide End Mill, Small Diameter Mill Cutter	5mm	6mm	13mm	50mm
4 Flute, 6Mm Flat Carbide End Mill, Small Diameter Mill Cutter	6mm	6mm	15mm	50mm
4 Flute, 8Mm Flat Carbide End Mill, Small Diameter Mill Cutter	8mm	8mm	20mm	60mm
4 Flute, 10Mm Flat Carbide End Mill, Small Diameter Mill Cutter	10mm	10mm	25mm	75mm
4 Flute, 12Mm Flat Carbide End Mill, Small Diameter Mill Cutter	12mm	12mm	30mm	75mm
4 Flute, 16Mm Flat Carbide End Mill, Small Diameter Mill Cutter	16mm	16mm	40mm	100mm
4 Flute, 20Mm Flat Carbide End Mill, Small Diameter Mill Cutter	20mm	20mm	45mm	100mm
