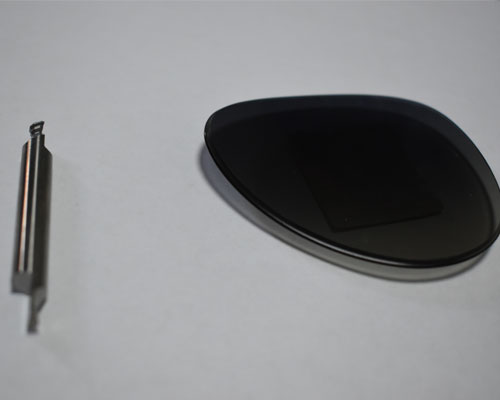

Carbide end mill for optical lens, widely applied to optical industry, to cut and mill the frame of the lens to match the rims and shape the the lens to the designed aesthetic effect.

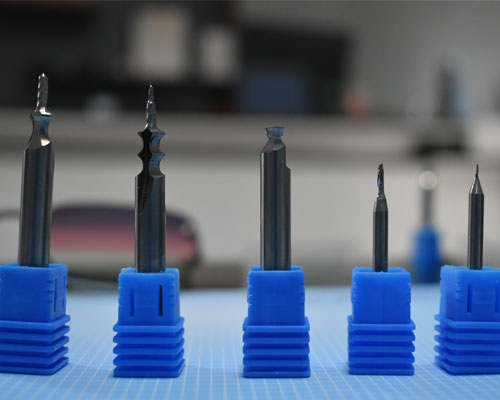

Betalent carbide specially develop a series of carbide end mills for optical lens. Including the single flute end mill for screw hole drilling and milling, the end mill for lens frame milling, the multifunctional end mill integrated with screw hole machining, plate cutting, and shape of frame machining.
Advantage: Accurate end mill with tolerance 1micron, surface fine finish without burr, can get a mirror polishing milling result on PC or PA lens. We have several lens machining CNC machines to test the end mill performance after each new design end mill come out, which can save lots time on way shipping for customer’s trial, make sure all adjustment to be done before shipping out, and customers can get a satisfied tool they want at the first time they receive the sample.
Common specifications
Cutting Dia. (mm) | Specification | Flute | Function | Tool life |
3 | D3.0*38-D1.5*5.5H-1F-45 | 1 | Lens cutting | 8,000-10,000pcs |
3 | D3.0*38-D1.5*5H-1F | 1 | Single flute flat end mill for lens screw hole drilling, plate cutting | 8,000-10,000pcs |
3 | D3.0*38-D2*5H-D1.2*3.5H-1F | 1 | Single flute double helical flat end mill for lens screw hole drilling, plate cutting | 5,000-8,000pcs |
6 | D6*45-D3.4*R2-1F | 1 | Cutting end mill for optical industry, R shape lens profile milling cutter | 5,000-8,000pcs |
6 | D6*45-D2.7*R2-1F | 1 | Plate cutting and R shape lens profile end mill | 5,000-8,000pcs |
6 | D6*45-D2.7*45°*R1.2*45°-1F | 1 | Plate cutting and R shape lens profile end mill | 5,000-8,000pcs |
6 | D6*45-D3*50°*70°-1F | 1 | Plate cutting and V shape lens profile end mill | 10,000-12,000pcs |
6 | D6*45-D3*55°*55°0.4*45°-1F | 1 | Plate cutting and R shape with chamfer lens profile end mill | 5,000-8,000pcs |
6 | D6*45-D3.8*R2*0.5/0.6*0.8-1F | Recess lens profile end mill | 5,000-8,000pcs | |
6 | D6*45-D3.8*0.5*0.75*45°-1F | 1 | Reversed T shape lens profile milling | 5,000-8,000pcs |
6 | D6*50-D3.4*R2-3F-D2*5H | 3 | Multifunction lens profile and cutting end mill | 5,000-8,000pcs |

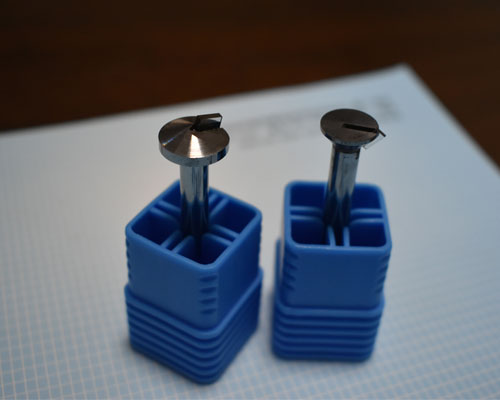

6 | D6*35-150°*6H-1F | 1 | Diamond chamfering end mill, chamfer milling cutter | 5,000-8,000pcs |
6 | D6*35-150°*6H-1F | 1 | Diamond R shape profile end mill, Diamond end mill for optical industry. | 5,000-8,000pcs |
