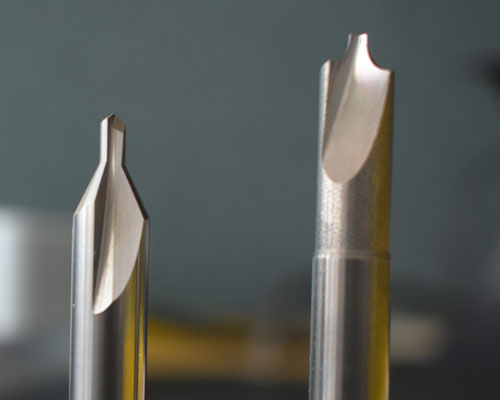

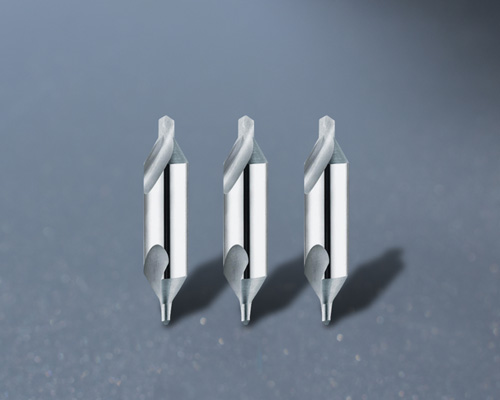

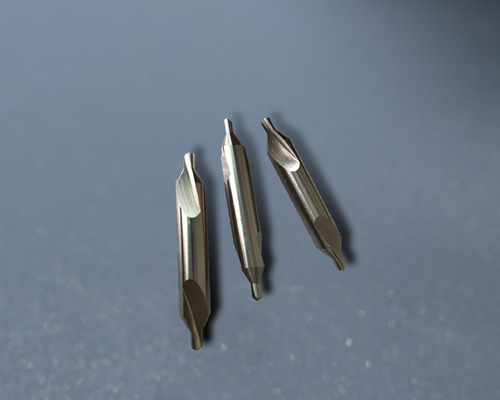

Center drill bit is a common tool in machining, which plays an important role in actual production. The first application of center drill was to punch the center hole of shaft parts. With the increasing popularity of automation, it is more and more widely used in multi-functional CNC equipment The most important function of center drill bit is to drill the center hole, so as to ensure the position the part hole drilling, guide the twist drill to drill the hole, and reduce the deviation.

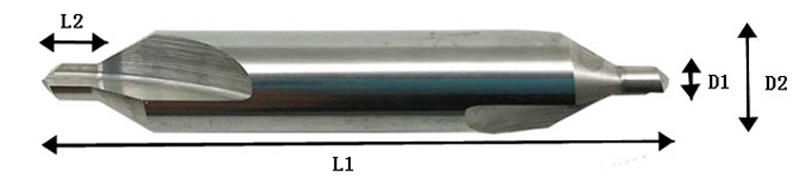

D1 | D2 | L2 | L1 |
1.0*60° | 4 | 1.6 | 40 |
1.5*60° | 4 | 2.1 | 40 |
2.0*60° | 6 | 2.6 | 50 |
2.5*60° | 6 | 3.1 | 50 |
3.0*60° | 8 | 4 | 50 |
4.0*60° | 10 | 5 | 55 |
5.0*60° | 10 | 6 | 70 |
6.0*60° | 12 | 8 | 75 |
